石墨-射出成形應用
碳、石墨射出成形應用

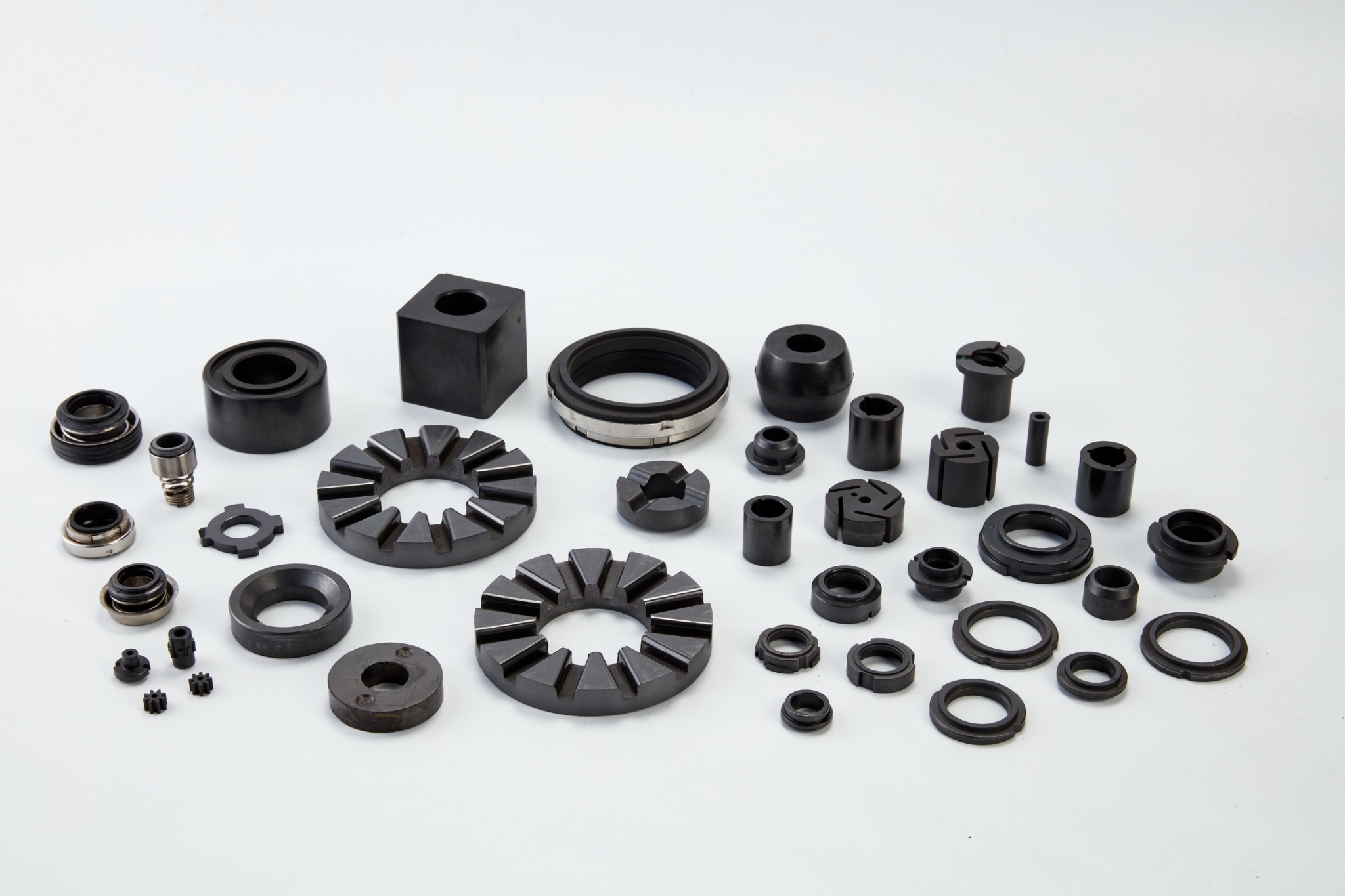

碳、石墨射出或模壓成型材料具有自潤性耐酸鹼、高硬度、耐磨耗性、品質規格均一性...等。對於產品形狀特殊，不易加工。可開發模具成型量產，降低製作成本
| Proerty | values | SC-3E3 | HC-3E3 | GC-202 | GC-202-HT | BSP-80 |
| Density | g/cm3 | 1.78 | 1.8 | 1.75 | 1.75 | 1.78 |
| Hardness Rockwell B 5/100 | Shore | 80 | 80 | 65 | 65 | 35 |
| Flexural Strength |
Mpa |
75 | 75 | 70 | 65 | 40 |
| Compressive Strength |
Mpa |
190 | 190 | 780 | 130 | 100 |
| E mouulus |
Mpa |
19000 | 20000 | 17000 | 17000 | 17000 |
| Thermal expension | x10-6K-1 | 15 | 4.5 | 16 | 8 | 16 |
|
temperature resistance in ox,Atm |
℃ | 180 | 250 | 780 | 300 | 180 |
|
temperature resistance in ox,Atm |
℃ | 180 | 250 | 180 | 300 | 180 |
